PLANNED AND CARRIED OUT FOR BIG SLIDING GATES, UP TO 2200 KG
TRAKTOR is the solution for heavy gates, designed to guarantee smooth movement and durability over time.
The mechanical / electronic combination, expressly conceived from scratch for this operator, makes it ideal for contexts that require high maneuvering speed, up to 16 m/minute, and high safety standards. The high quality components and the integrated ventilation system allow a semi-intensive use, even in industrial contexts.
Backing plate included.
| Technical features | TRAKTOR | |
| Power supply | (V) | 230 Vac – 50Hz |
| Motore absorption | A | 2 |
| Max gate weight | (Kg) | 2200 |
| Max speed (adjustable) | (m/min) | 16 |
| Maximum thrust | (N) | 4700 |

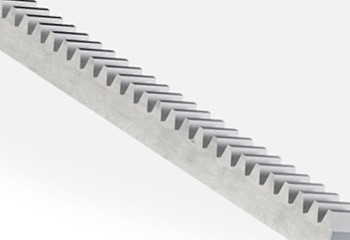

| Pinion module | M4 Z19 | |
| Service | (%) | 80 |
| Max continuous duration | 8 Minuti | |
| Daily cycles | (n°) | 200 |
| Tested on cycles | (n°) | 80.000 |
| Protection class | (IP) | 44 |
| Integrated control unit | CT INVERTER TRAKTOR |
