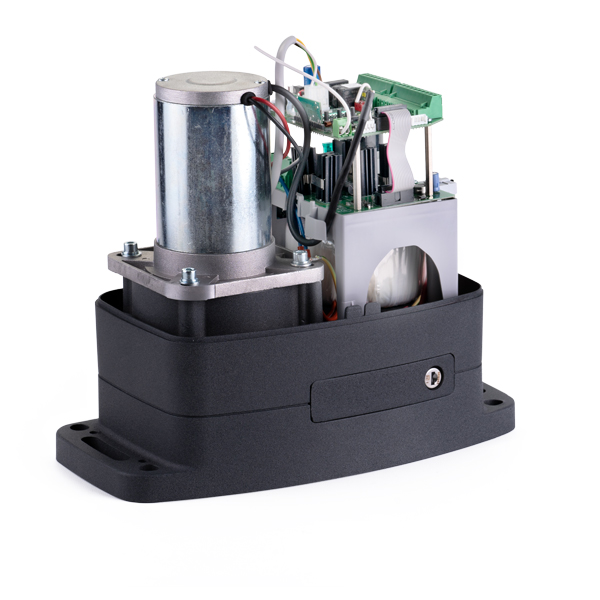

Gearmotor designed for heavy and intensive use.
Available in two versions:
KALOS XL 24V POWER Version for sliding gates up to 1500Kg, for intensive use
KALOS XL 24V POWERSPEED . Fast version for gates up to 1000kg, 20 m / minute.
Power and total control of movement at your service:

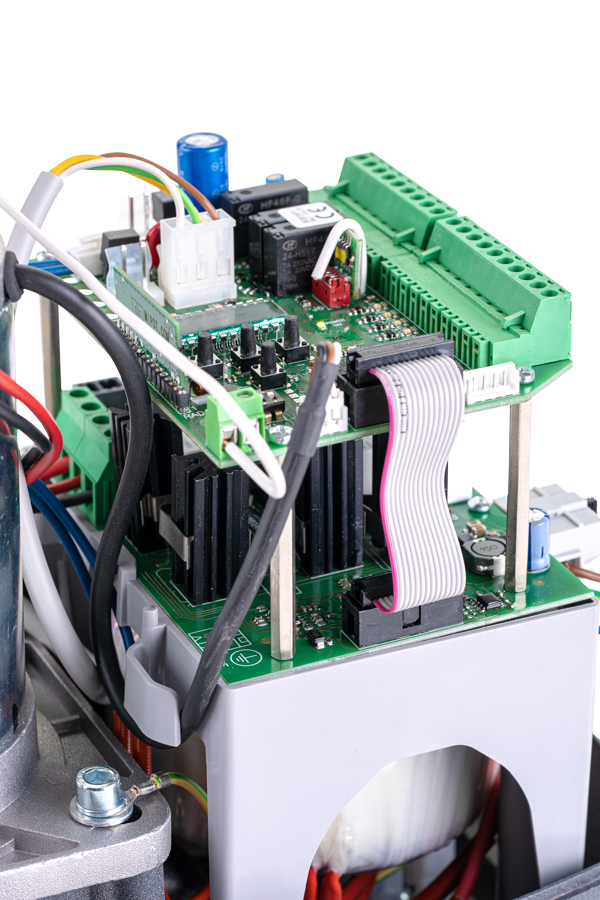

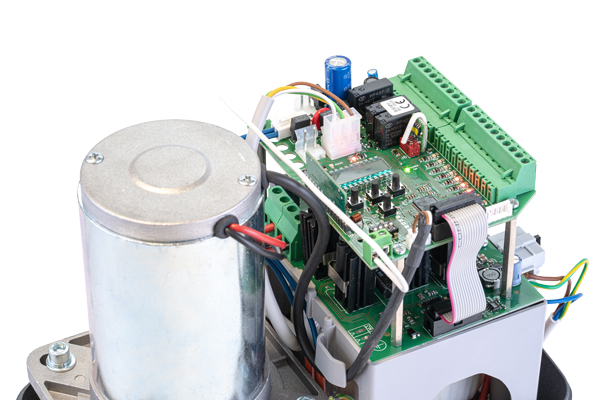

The new BIOS1 24 POWER is designed on two levels, separate control and power, specifically for KALOS XL POWER, with integrated “H” bridge .
The control unit is capable of controlling the flow of power and the speed of the motor in direct operation and in the slowdown phases, allowing the user to obtain a precise and refined movement in all conditions.
Radio module and receiver integrated, up to 1000 transmitters
Fixing plate included.
| Technical features | KALOS XL 24V POWER 1500 |
KALOS XL 24V POWERSPEED 1000 | |
| Power Supply | (V) | 230 Vac 50Hz |
230 Vac 50Hz |
| Motor power supply | (V) | 24Vdc | 24Vdc |
| Motor absorption | (A) | 8 | 5 |
| Maximum gate weight | (Kg) | 1500 | 1000 |
| Capacitor | (µF) | - | - |
| Speed | (m/min) | 10…12 | 20 |
| Maximum thrust | (N) | 900 | 750 |
| Service | (%) | 100 | 50 |
| Recommended daily revolutions | (n°) | 400 | 300 |
| Guaranteed consecutive cycles T=20°C; Stroke: 4,5m |
(n°) | 50 | 40 |
| Protection class | (IP) | 44 | 44 |
| Integrated control unit | BIOS1 24 POWER | BIOS1 24 POWER |
